Security Surveillance Products & Solutions

PTZ cameras: Pan, Tilt, and Zoom

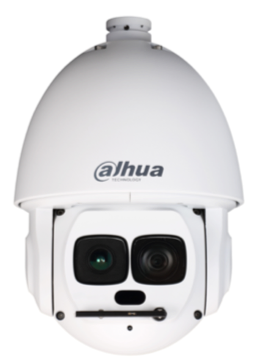

 Model: DH-SD6ALA230FN-HNI

30x Starlight Laser PTZ Dome
2 MP Indoor/Outdoor Network Camera

• Max 60 fps at 720p and 30 fps at 1080p
• Powerful 30x Optical Zoom
• Starlight Ultra-low Light Technology
• Laser Beam Distance Up to 500 m (1640 ft)
• Intelligent Video System with Auto-tracking
• Built-in 7/2 Alarm in/out
• Outdoor Rated IP67
• Hi-PoE
• Five-year Warranty*

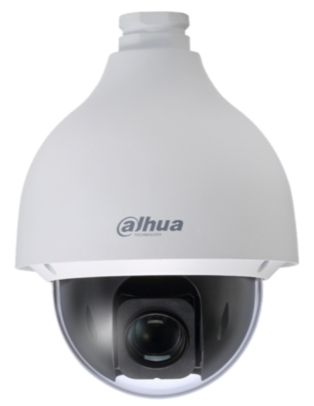

 Model: 50430UNI

4 MP PTZ Network Camera
30x PTZ Network Camera

• 1/3-in. 4 MP Progressive Scan CMOS
• Powerful 30x Optical Zoom
• H.265 and H.264 Video Compression Encoding
• 4 MP / 3 MP at 30 fps and 1080p at 30/60 fps
• True Wide Dynamic Range
• Intelligent Video System (IVS) with Auto-tracking
• IP67 Environmental Protec on Ra ng and IK10 Vandal Resistance
• Designed for Extreme Temperature Environments
• PoE+ Support
• Five-year Warranty*

Vari-focal cameras

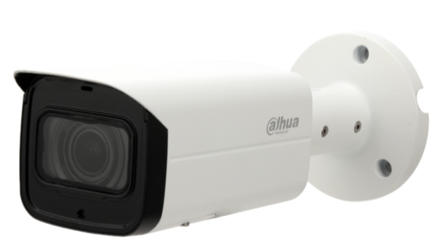

 Model: N52BF3Z

5 MP Vari-focal Network Bullet Camera
WDR IR Bullet Network Camera

• 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
• Dual Stream Encoding with Smart H. 265+ and H.264 Dual Codecs
• 5 MP at 20 fps or 3 MP at 30 fps, Maximum Resolution
• Starlight Technology for Ultra-low Light Sensitivity
• 2.7 mm to 13.5 mm Motorized Optical Zoom Lens
• True WDR (120 dB) and Day/Night (ICR)
• Maximum IR LED Length 60 m (197 ft) with Smart IR
• Intelligent Video System1
• IP67 Ingress Protec on
• PoE Support
• Five-year Warranty*

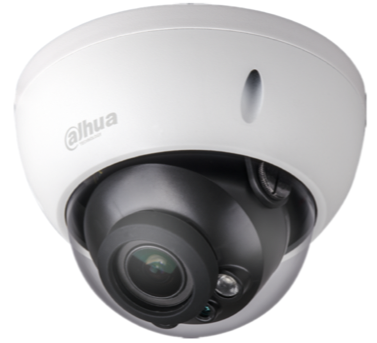

 Model: N52BM3Z

5 MP Vari-focal Network Dome Camera
WDR IR Dome Network Camera

• 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
• Dual Stream Encoding with Smart H. 265+ and H.264 Dual Codecs
• 5 MP at 20 fps or 3 MP at 30 fps, Maximum Resolution
• Starlight Technology for Ultra-low Light Sensitivity
• 2.7 mm to 13.5 mm Motorized Zoom Lens
• True WDR (120 dB) and Day/Night (ICR)
• Maximum IR LED Length 30 m (98 ft) with Smart IR
• Intelligent Video System1
• IP67 Ingress Protec on and IK10 Vandal Resistance
• PoE Support
• Five-year Warranty*

Panoramic cameras

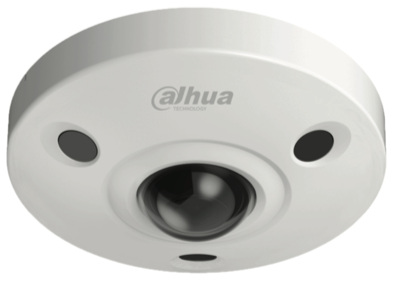

 Model: NK8BR4

12 MP Network Fisheye Camera
360° Panoramic IR Fisheye Camera

• 1/1.7-in. 12 MP Progressive-scan STARVISTM CMOS Sensor
• 12 MP (4000 x 3000) at 25 fps Maximum Resolution
• Triple Stream Encoding
• H.265 and H.264 Dual Codecs
• Multiple Dewarp Modes
• Day/Night (ICR), 3DNR, AWB, AGC, BLC
• Intelligent Video System with Intelligent Business Analysis
• Maximum IR Distance 10 m (33 ft)
• Micro SD Memory, IP67, IK10, PoE
• Five-year Warranty*

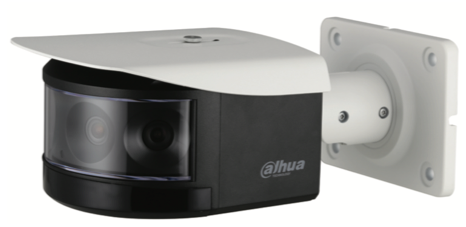

 Model: DH-IPC-PFW8800N-A180

Multi-sensor Panoramic Bullet Camera
4 x 2 MP Multi-sensor Panoramic Network IR Bullet Camera

• Four (4) 1/2.8-in. 2 MP Progressive Scan STARVISTM CMOS Imagers
• Triple-stream Encoding with Smart H.265+ Compression
• Maximum Resolution: 4096 x 1800 at 25 fps
• Starlight Technology for Ultra-low Light Sensitivity
• Supports 180° Panoramic View
• Day/Night (ICR), 3DNR, AWB, AGC, BLC
• Intelligent Video System
• Maximum IR LED Distance 30 m (98 ft)
• IP67 Ingress Protec on and IK10 Vandal Resistance
• PoE+ Support

Video Management Systems (VMS)

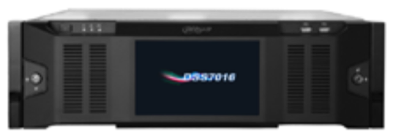

 Model: DHI-DSS7016DR

General Surveillance Management Center

DSS7016D is an all-in-one server that is composed of Dahua’s video management system (VMS), Opera ng System and hardware. It is easy to deploy and operate.
DSS7016D provides the best level of support while maintaining an easy-to-use interface for operators and technicians. Features include: user rights management, device management, alarm management, center storage, TV wall, 2-way audio talk, access control, video talk, entrance management, alarm controller and other advanced features. Some of the advanced feature support includes: POS Integra on with data sync and Intelligent video analysis to aid in event identification (Tripwire, Intrusion, Object Abandonment, Object Missing, People Counting, etc.) and E-Map

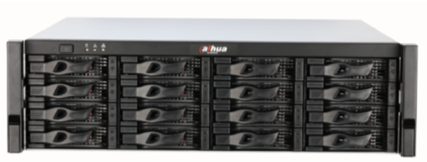

 Model: EVS5016S-R

16-HDD Enterprise Video Storage

EVS5016S-R offers unparalleled storage technology. It is designed and developed to meet the needs of medium-range to high-end IP video surveillance applications. It supports 512 channels of IP camera inputs, and 1024Mbps incoming/recording bandwidth.
This EVS is ideal for a wide range of applications such as public safety, transportation stations, government institutions, hotel resorts, shopping malls, city centers, and financial institutions, where demand expansion flexibility, high reliability and centralized storage management.
This EVS is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.4.

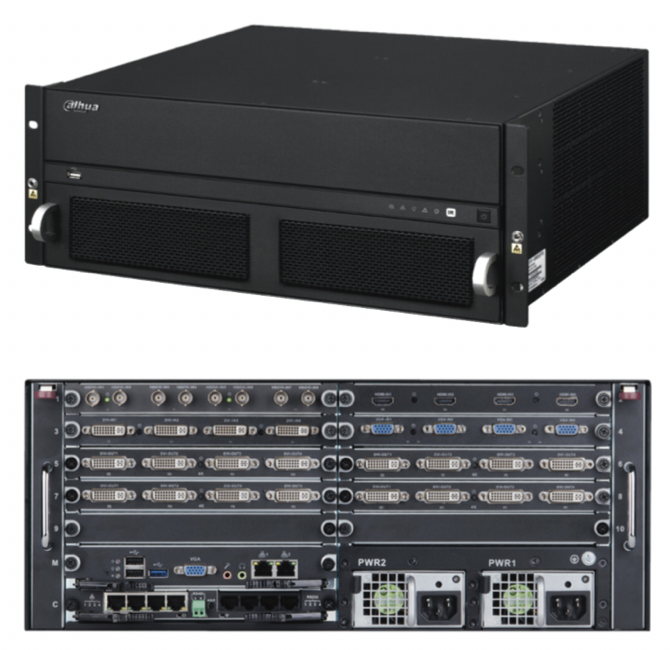

 Model: M70-4U-E

Multi-service Video Management Platform

• 19” standard 4U ATCA industry box
• Easy and flexible configuration with pluggable card module design
• 80ch@1080P or 320ch@D1 signal encoding (full configured)
• 80ch@4K or 320ch@1080P or 720ch@720P or 1500ch@D1 signal decoding (full configured)
• Support 320ch@1080P H.265 signal decoding (full configured)
• Support 240@D1 nonstandard stream signal decoding (full configured)
• Support max 60 screens splicing
• Support analog/digital video signals input and matrix output
• Support SD/HD video signal matrix switch and output
• Support non-compressed digital signal encoding output
• 6 RJ-45 gigabit network ports for matrix control, preview and online central storage
• Support TCP/IP/RTP/RTSP/RTCP/TCP/UDP/DHCP/PPPoE and etc. network protocols
• Remote cast analog/digital video onto the video-wall
• Remote reboot/upgrade/default se ng and etc. operations
• Support VGA signal automatic adjustment

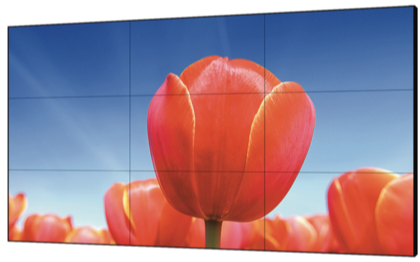

 Model: DHL490UCM-EG

49’’ Full-HD Video Wall Display Unit (Narrow Bezel 3.5mm)

• Industrial level DID LCD panel, suitable for extensive 7×24 continuous works
• Ultra-narrow side LCD patchwork
• High contrast and high brightness greatly enhance the video layering, and present the details of the video
• High fidelity digital processing, brilliant and vivid video
• Built-in 3D COMB filter and 3D Noise Reduction
• Abundant interfaces HDMI, DVI, VGA, BNC, support video loop
• Built-in picture splicing function
• Infrared, RS232 double mode, supporting remote PC control · Fan smart detection, OSD prompt
• Brightness smart detection, power-saving
• Using Tamper-proof metal housing, no radiation
• Professional thermal design to extend equipment lifespan
• Built-in power, low energy consumption, ultra-quiet
• Fast stack installation, professional project design, supporting arc-shaped mounting
• Widely used in MCC (monitor command center), Dispatching Platform, Safe City

Automatic Number-Plate Recognition (ANPR)

 Model: DHI-IVS-T7000-R-PRO

License plate recognition software

• Designed for companies that need a secure, fast and efficient way to integrate LPR Technology whatever is the target scenario: police cars, tolling, access control, fixed cameras, dome cameras, etc.
• It can recognize license plate from pictures
• Support to recognize 1080P picture
• For each license plate logs:
• License plates amount (up to 3 on the same image)
• Timestamp, camera ID, country, etc.
• Location of the license plate in the image
• Support over 100 countries
• High recognition efficiency

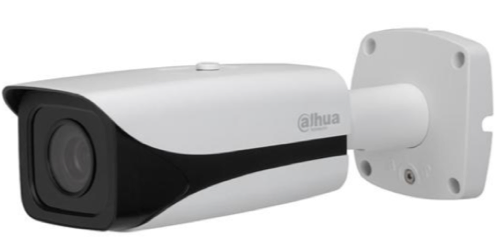

 Model: ITC237-PW1B-IRZ

2 Megapixel Full HD WDR Access ANPR Camera

• Embedded with LPR algorithm inside the camera.
• Support plate cut-out, overview picture snapshot and video recording
• Embedded with White list database, control the barrier
• Powerful 2.7-12mm motorized lens and IR light, ideal for monitor ANPR distance as 3~8m
• Wide working temperature, IP67, IK10 and superior performance for outdoor applications
• True WDR technology
